Exhaust Manifold Bracket No. 1 Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily tighten the exhaust manifold bracket No. 1 installation bolts in the order shown in the figure.

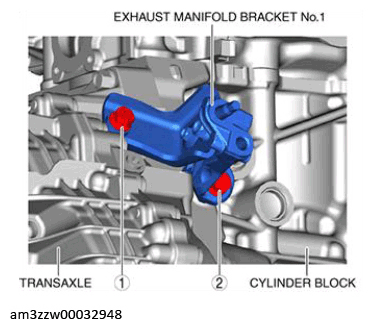

    Fig 1: Exhaust Manifold Bracket No. 1 Bolts Tightening Sequence
    G13174529Courtesy of MAZDA MOTORS CORP.
  2. Loosen the bolt shown in the figure until it is no longer seated on the surface.
    Fig 2: Exhaust Manifold Bracket No. 1 Bolts With Torque Specification
    G13174526Courtesy of MAZDA MOTORS CORP.
  3. Tighten the bolts in the order shown in the figure.
Fig 3: Exhaust Manifold Bracket No. 1 Bolts Tightening Sequence
G13174531Courtesy of MAZDA MOTORS CORP.
