Water Inlet Pipe and Flange Installation Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Be aware of the following points, otherwise engine coolant leakage could result.
    • Do not allow oil (such as engine oil, ATF) to contact O-ring
    • Do not damage O-rings
  1. Apply engine coolant to a new O-ring (water pump side).
  2. Install the O-ring to the water inlet pipe.
    G13556646Courtesy of MAZDA MOTORS CORP.
  3. Insert the water inlet pipe into the water pump so that the marked position is aligned with the projection position.
    G13730067Courtesy of MAZDA MOTORS CORP.
  4. Temporarily tighten the bolt shown in the figure.
    G12188444Courtesy of MAZDA MOTORS CORP.
  5. Apply engine coolant to a new O-ring (flange side).
  6. Install the O-ring to the water inlet pipe.

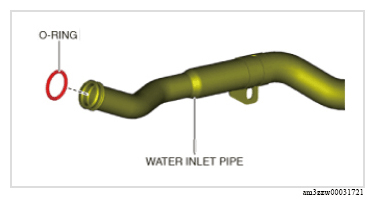

    G13174452Courtesy of MAZDA MOTORS CORP.
  7. Assemble the flange, gasket and bolts.
    G13556650Courtesy of MAZDA MOTORS CORP.
  8. Assemble the water inlet pipe and the flange so that the marked position is aligned with the projection position.

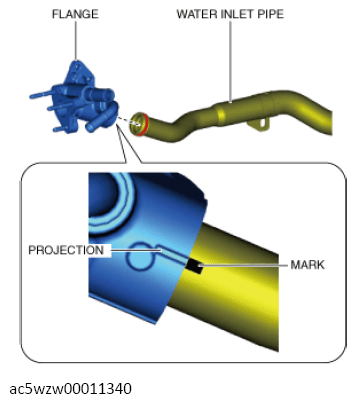

    G13730071Courtesy of MAZDA MOTORS CORP.
  9. Temporarily tighten the bolt shown in the figure.
    G12188448Courtesy of MAZDA MOTORS CORP.
  10. Tighten the bolts shown in the figure.
G13556653Courtesy of MAZDA MOTORS CORP.
