Purge Solenoid Valve Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

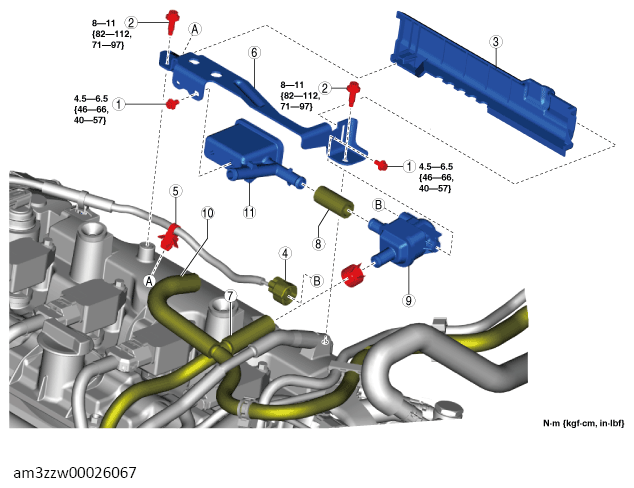

Fig 1: Purge Solenoid Valve Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

PART DESCRIPTION

1	Bolt
2	Bolt
3	Insulator (See INSULATOR INSTALLATION NOTE .)
4	Purge solenoid valve connector
5	Wiring harness clip
6	Bracket
7	Evaporative hose No. 1 (See EVAPORATIVE HOSE NO. 1 INSTALLATION NOTE .)
8	Evaporative hose No. 2 (See EVAPORATIVE HOSE NO. 2 INSTALLATION NOTE .)
9	Purge solenoid valve
10	Evaporative hose No. 3 (See EVAPORATIVE HOSE NO. 3 INSTALLATION NOTE .)
11	Catch tank
