Fuel Tank Side: AWD
WARNING: This page is about a different variant/trim than selected.

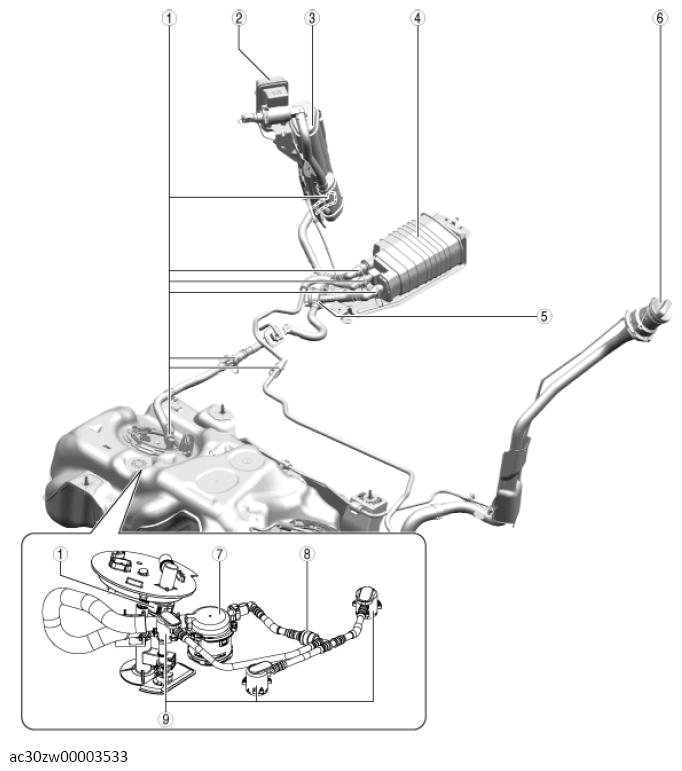

PART DESCRIPTION
| 1 | Quick release connector (See QUICK RELEASE CONNECTOR (EMISSION SYSTEM) REMOVAL/INSTALLATION .) |
| 2 | CV solenoid valve (See CANISTER VENT (CV) SOLENOID VALVE REMOVAL/INSTALLATION .) (See CANISTER VENT (CV) SOLENOID VALVE INSPECTION .) |
| 3 | charcoal canister (sub) (See CHARCOAL CANISTER REMOVAL/INSTALLATION .) (See CHARCOAL CANISTER INSPECTION .) |
| 4 | Charcoal canister (main) (See CHARCOAL CANISTER REMOVAL/INSTALLATION .) (See CHARCOAL CANISTER INSPECTION .) |
| 5 | Pressure control valve (See PRESSURE CONTROL VALVE REMOVAL/INSTALLATION .) (See PRESSURE CONTROL VALVE INSPECTION .) |
| 6 | Fuel-filler cap (See FUEL-FILLER PIPE REMOVAL/INSTALLATION .) (See FUEL-FILLER CAP INSPECTION .) |
| 7 | Fuel shut-off valve (See FUEL SHUT-OFF VALVE REMOVAL/INSTALLATION .) (See FUEL SHUT-OFF VALVE INSPECTION .) |
| 8 | Check valve (See CHECK VALVE REMOVAL/INSTALLATION .) (See CHECK VALVE INSPECTION .) |
| 9 | Rollover valve (See ROLLOVER VALVE REMOVAL/INSTALLATION .) (See ROLLOVER VALVE INSPECTION .) |
