Canister Vent (CV) Solenoid Valve Removal/Installation: Notes

WARNING: This page is about a different variant/trim than selected.

Replacement Part

PART DESCRIPTION

O-ring
Quantity: 2
Location of use: CV solenoid valve

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION [(US)] .)
Remove the charcoal canister (sub) component. (See CHARCOAL CANISTER REMOVAL/INSTALLATION .)
Remove in the order indicated in the table.

Install in the reverse order of removal.

Courtesy of MAZDA MOTORS CORP.

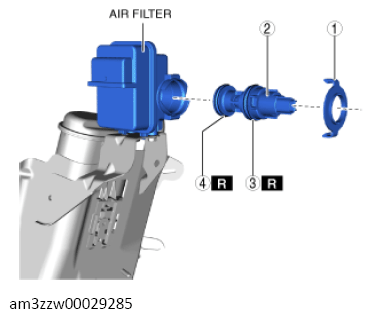

PART DESCRIPTION

1	Blind cap
2	CV solenoid valve (See CV SOLENOID VALVE REMOVAL NOTE .) (See CV SOLENOID VALVE INSTALLATION NOTE .)
3	O-ring No. 1
4	O-ring No. 2
