Exhaust Manifold Insulator Removal Note

WARNING: This page is about a different variant/trim than selected.
  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove the bolts shown in the figure. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
    G12184371Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the wiring harness clip shown in the figure.
    G12184372Courtesy of MAZDA MOTORS CORP.
  4. Set the purge solenoid valve component aside so that it does not interfere with the servicing.
    G12184373Courtesy of MAZDA MOTORS CORP.
  5. Remove the insulators shown in the figure.

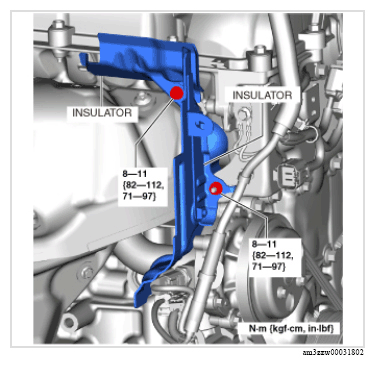

    Fig 1: Insulator Nut And Bolt With Torque Specification (2WD)
    G13175118Courtesy of MAZDA MOTORS CORP.
  6. Remove the exhaust manifold insulator.


  1. Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION .)
  2. Remove the bolts shown in the figure. (See PURGE SOLENOID VALVE REMOVAL/INSTALLATION .)
    G12184371Courtesy of MAZDA MOTORS CORP.
  3. Disconnect the wiring harness clip shown in the figure.
    G12184372Courtesy of MAZDA MOTORS CORP.
  4. Set the purge solenoid valve component aside so that it does not interfere with the servicing.
    G12184373Courtesy of MAZDA MOTORS CORP.
  5. Remove the insulators shown in the figure.
    Fig 1: Insulator, Nut And Bolt With Torque Specification (AWD)
    G13175118Courtesy of MAZDA MOTORS CORP.
  6. Remove the exhaust manifold insulator.
