Exhaust Manifold Installation Note

WARNING: This page is about a different variant/trim than selected.
  1. Temporarily tighten the exhaust manifold installation nuts (1) and (2) shown in the figure by hand.
    Fig 1: Exhaust Manifold Nuts Tightening Sequence (2WD)
    G09074419Courtesy of MAZDA MOTORS CORP.
  2. Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure.

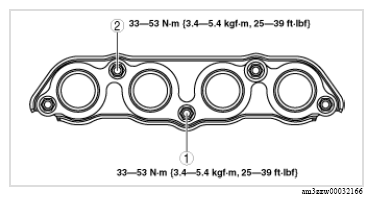

    Fig 2: Exhaust Manifold Nuts With Torque Specification (2WD)
    G13175111Courtesy of MAZDA MOTORS CORP.
  3. Temporarily tighten the exhaust manifold installation nuts (3) to (5) shown in the figure by hand.

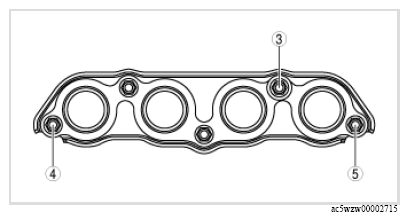

    Fig 3: Exhaust Manifold Nuts Tightening Sequence (2WD)
    G13108639Courtesy of MAZDA MOTORS CORP.
  4. Tighten the exhaust manifold installation nuts (3) to (5) shown in the figure.
  5. Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure.
  6. Temporarily tighten the bolts (6) and (7) shown in the figure.
    Fig 4: Exhaust Manifold Bolts With Torque Specification (2WD)
    G12230431Courtesy of MAZDA MOTORS CORP.
  7. Tighten the bolt (6) shown in the figure.
  8. Tighten the bolt (7) shown in the figure.
  9. Install the front crossmember. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(US)] .)


  1. Temporarily tighten the exhaust manifold installation nuts (1) and (2) shown in the figure by hand.
    Fig 1: Exhaust Manifold Nuts Tightening Sequence (AWD)
    G09074419Courtesy of MAZDA MOTORS CORP.
  2. Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure.
    Fig 2: Exhaust Manifold Nuts With Torque Specification (AWD)
    G13175111Courtesy of MAZDA MOTORS CORP.
  3. Temporarily tighten the exhaust manifold installation nuts (3) to (5) shown in the figure by hand.
    Fig 3: Exhaust Manifold Nuts Tightening Sequence (AWD)
    G09074420Courtesy of MAZDA MOTORS CORP.
  4. Tighten the exhaust manifold installation nuts (3) to (5) shown in the figure.
  5. Tighten the exhaust manifold installation nuts (1) and (2) shown in the figure.
  6. Temporarily tighten the bolts (6) and (7) shown in the figure.
    Fig 4: Exhaust Manifold Bolts With Torque Specification (AWD)
    G12230431Courtesy of MAZDA MOTORS CORP.
  7. Tighten the bolt (6) shown in the figure.
  8. Tighten the bolt (7) shown in the figure.
  9. Install the front crossmember. (See FRONT CROSSMEMBER REMOVAL/INSTALLATION [(US)] .)
