Step 1
WARNING: This page is about a different variant/trim than selected.

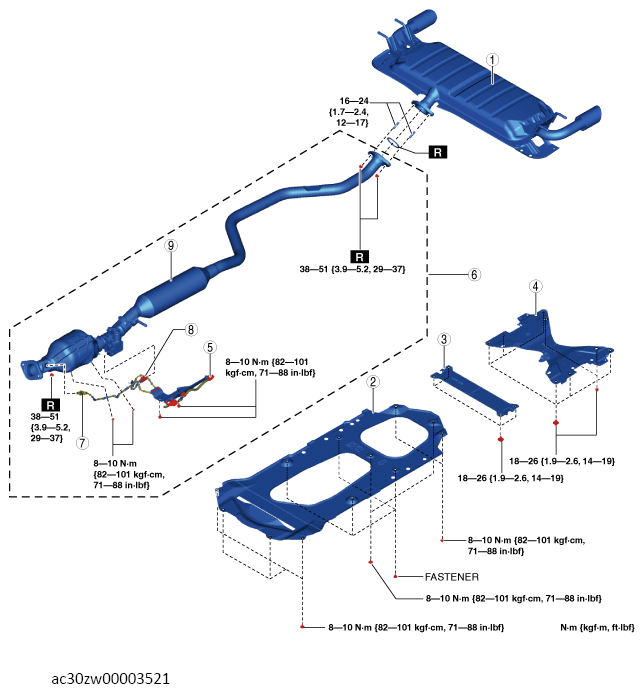

PART DESCRIPTION
| 1 | Main silencer |
| 2 | Tunnel cover (See TUNNEL COVER INSTALLATION NOTE .) |
| 3 | Brace bar (See BRACE BAR INSTALLATION NOTE .) |
| 4 | Tunnel member (See TUNNEL MEMBER INSTALLATION NOTE .) |
| 5 | Connector |
| 6 | TWC component (See TWC COMPONENT REMOVAL NOTE .) |
| 7 | HO2S (See HEATED OXYGEN SENSOR (HO2S) REMOVAL/INSTALLATION .) |
| 8 | Exhaust shutter valve connector |
| 9 | TWC |
