Exhaust System Insulator Removal/Installation

WARNING: This page is about a different variant/trim than selected.
  1. Remove the floor under cover No. 1 (RH). (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  2. Remove the floor under cover No. 2. (See FLOOR UNDER COVER REMOVAL/INSTALLATION .)
  3. Remove the exhaust system insulator in the order shown in the figure.
  4. Install in the reverse order of removal.

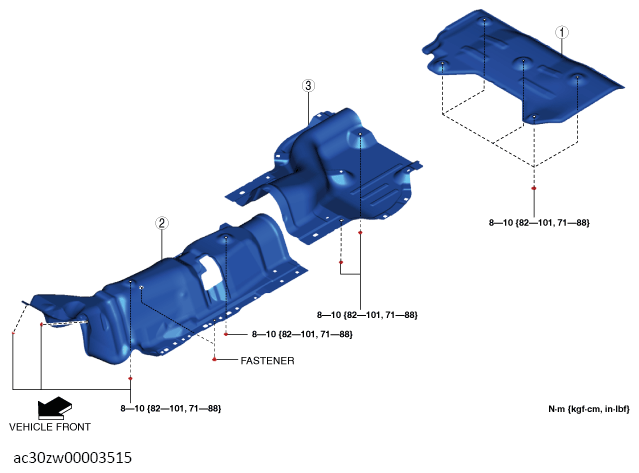

    Fig 1: Exhaust System Insulator Components With Torque Specification (2WD)
    G13732070Courtesy of MAZDA MOTORS CORP.
    PART DESCRIPTION

    1 Insulator (rear)
    (See INSULATOR (REAR) INSTALLATION NOTE .)
    2 Insulator (front)
    (See INSULATOR (FRONT) INSTALLATION NOTE .)
    3 Insulator (middle)
    (See INSULATOR (MIDDLE) INSTALLATION NOTE .)
