Oil Pump Driven Sprocket Installation Note (VIN 7)

WARNING: This page is about a different variant/trim than selected.

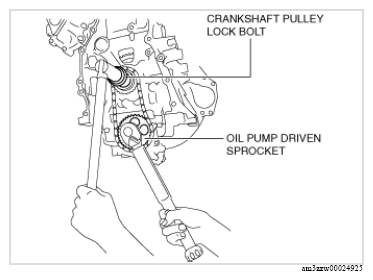

  1. Temporarily assemble the crankshaft pulley lock bolt, and lock the oil pump against rotation as shown in the figure.
    G13174398Courtesy of MAZDA MOTORS CORP.
  2. Install the oil pump driven sprocket.
  3. Remove the temporarily assembled crankshaft pulley lock bolt.
