Plug Hole Plate Removal/Installation: Installation
WARNING: This page is about a different variant/trim than selected.

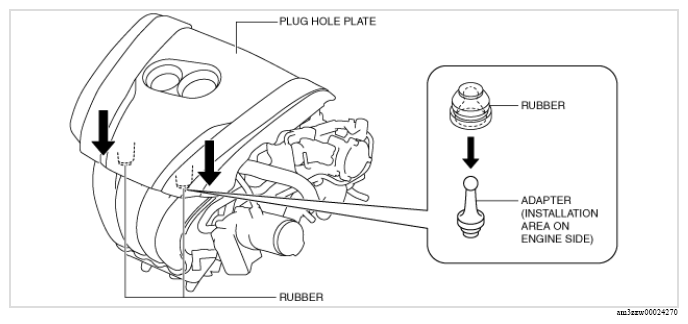

- Press the plug hole plate in the order shown in the figure to insert the adapter to the rubber on the engine side.
 Courtesy of MAZDA MOTORS CORP.
|

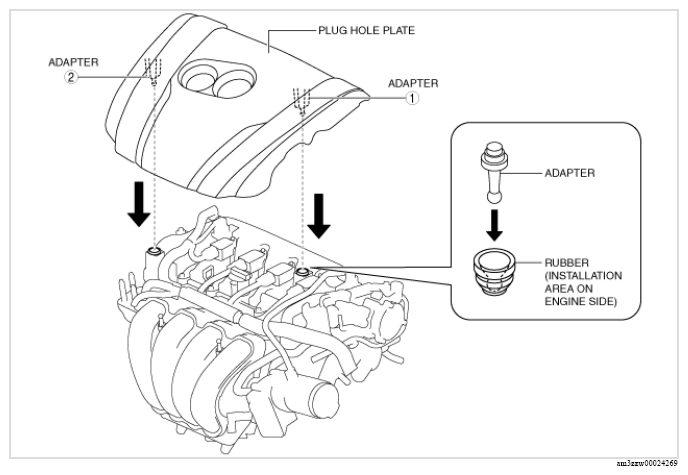

- Press the front part of the plug hole plate at the same time to insert the rubber to the adapter on the engine side.
 Courtesy of MAZDA MOTORS CORP.
|
