No. 3 engine mount installation note

WARNING: This page is about a different variant/trim than selected.
NOTE:
  • When replacing the No. 3 engine mount, place a mark at the same position as the one placed before removal.
  • If the No. 3 engine mount nut is loosened, tighten the engine front cover stud bolts because they may have loosened.
  1. Tighten the engine front cover stud bolts.
    Fig 1: Engine Front Cover Stud Bolts With Torque Specification
    G13556449Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten the No. 3 engine mount installation bolts and nuts using the following procedure:

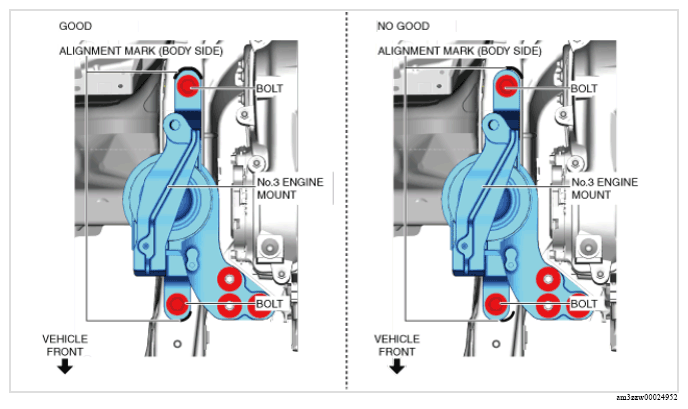

    1. Align the alignment marks on the body side and No. 3 engine mount, and temporarily tighten the bolts shown in the figure.
      G13174249Courtesy of MAZDA MOTORS CORP.

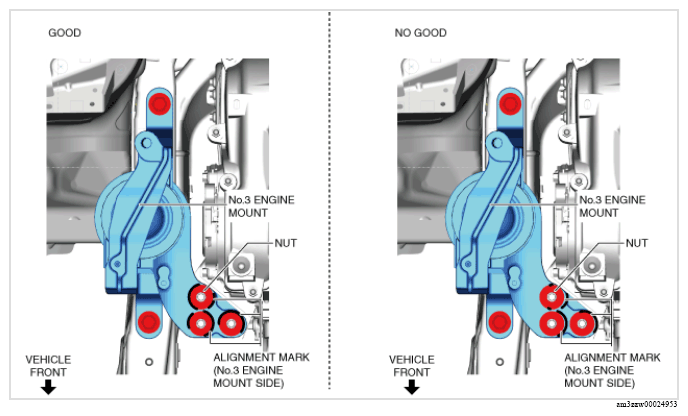

    2. Temporarily tighten the nuts shown in the figure while aligning the alignment marks of the No. 3 engine mount and nuts.
      • If the alignment marks are not aligned, align the alignment marks while slightly moving the engine and temporarily tighten the nuts.
    G13174250Courtesy of MAZDA MOTORS CORP.

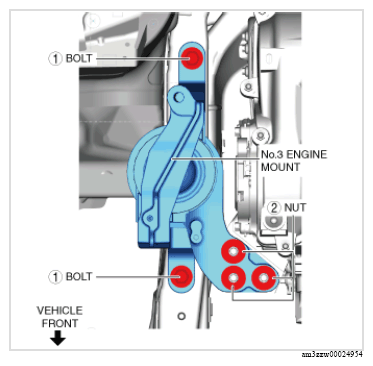

  3. Tighten the No. 3 engine mount installation bolts and nuts in the order shown in the figure.
    Fig 2: No. 3 Engine Mount Bolts And Nuts Tightening Sequence
    G13174251Courtesy of MAZDA MOTORS CORP.
  4. Remove the engine lifter or garage jack.
  5. Install in the reverse order of removal.
