No. 1 engine mount installation note (AWD)

WARNING: This page is about a different variant/trim than selected.
  1. Tighten the No. 1 engine mount bracket installation bolts in the order shown in the figure.
    Fig 1: No. 1 Engine Mount Bracket Bolts Tightening Sequence (AWD)
    G13556442Courtesy of MAZDA MOTORS CORP.
  2. Temporarily tighten the No. 1 engine mount rubber installation bolts in the order shown in the figure.

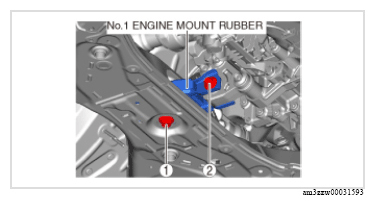

    Fig 2: No. 1 Engine Mount Rubber Bolts Tightening Sequence (AWD)
    G13174242Courtesy of MAZDA MOTORS CORP.
  3. Tighten the No. 1 engine mount rubber installation bolts in the order shown in the figure.
    Fig 3: No. 1 Engine Mount Rubber Bolts Tightening Sequence (AWD)
    G13174242Courtesy of MAZDA MOTORS CORP.
