Engine Location Index

WARNING: This page is about a different variant/trim than selected.

Courtesy of MAZDA MOTORS CORP.

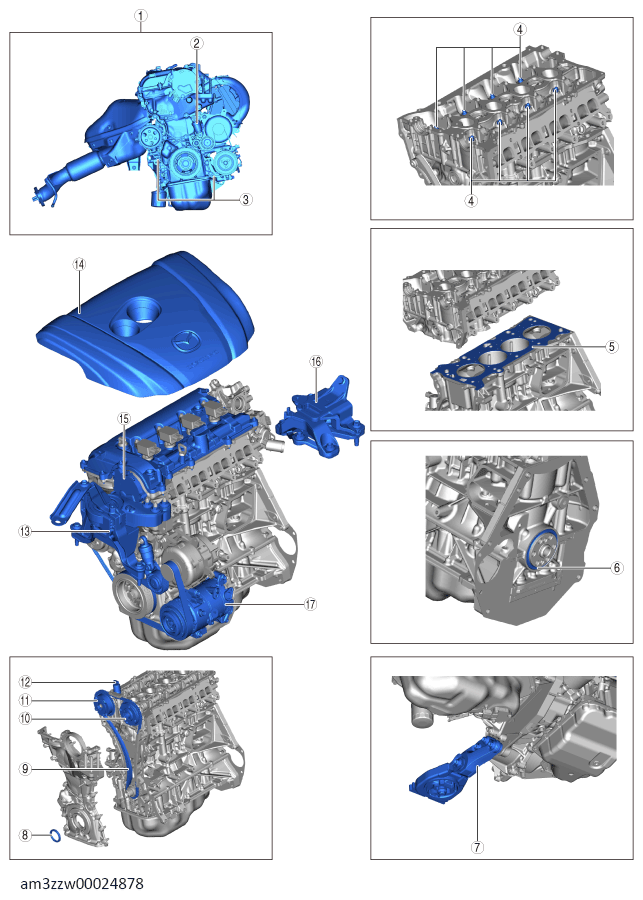

PART DESCRIPTION

1	Engine (See ENGINE TUNE-UP (VIN L) .) (See COMPRESSION INSPECTION .) (See .) (See ENGINE DISASSEMBLY/ASSEMBLY .)
2	Drive belt auto tensioner (See DRIVE BELT AUTO TENSIONER INSPECTION .) (See DRIVE BELT AUTO TENSIONER REMOVAL/INSTALLATION .)
3	Drive belt (See DRIVE BELT INSPECTION .) (See DRIVE BELT REMOVAL/INSTALLATION .)
4	HLA (See HYDRAULIC LASH ADJUSTER (HLA) INSPECTION .) (See HYDRAULIC LASH ADJUSTER (HLA) REMOVAL/INSTALLATION .)
5	Cylinder head gasket (See CYLINDER HEAD GASKET REPLACEMENT .)
6	Rear oil seal (See REAR OIL SEAL REPLACEMENT .)
7	No. 1 Engine Mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .)
8	Front oil seal (See FRONT OIL SEAL REPLACEMENT .)
9	Timing chain (See TIMING CHAIN REMOVAL/INSTALLATION .)
10	Electric variable valve timing actuator (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .)
11	Hydraulic variable valve timing actuator (See HYDRAULIC VARIABLE VALVE TIMING ACTUATOR INSPECTION .) (See ELECTRIC VARIABLE VALVE TIMING ACTUATOR, HYDRAULIC VARIABLE VALVE TIMING ACTUATOR REMOVAL/INSTALLATION .)
12	OCV (See OIL CONTROL VALVE (OCV) INSPECTION .) (See OIL CONTROL VALVE (OCV) REMOVAL/INSTALLATION .)
13	No. 3 Engine Mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .)
14	Plug hole plate (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN L) .)
15	Electric variable valve timing motor/driver (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER INSPECTION .) (See ELECTRIC VARIABLE VALVE TIMING MOTOR/DRIVER REMOVAL/INSTALLATION .)
16	No. 4 Engine Mount (See ENGINE MOUNT DISASSEMBLY/ASSEMBLY .)
