Oil Cooler Water Pipe Component Installation Note (VIN 7)

WARNING: This page is about a different variant/trim than selected.
  1. Install the oil cooler water pipe component in the order shown in the figure.

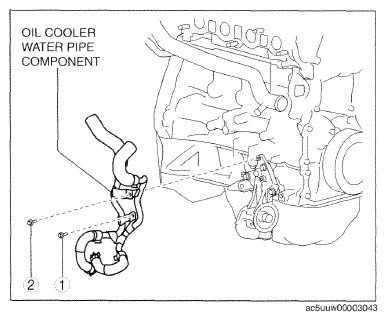

    Fig 1: Oil Cooler Water Pipe Component Bolts Tightening Sequence
    G09758305Courtesy of MAZDA MOTORS CORP.
