Water Inlet Pipe and Flange Installation Note

WARNING: This page is about a different variant/trim than selected.
CAUTION:
  • Be aware of the following points, otherwise engine coolant leakage could result.
    • Do not allow oil (such as engine oil, ATF) to contact O-ring
    • Do not damage O-rings
  1. Apply engine coolant to a new O-ring (water pump side).
  2. Install the O-ring to the water inlet pipe.

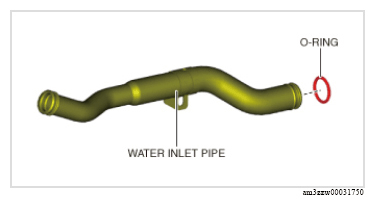

    G13174152Courtesy of MAZDA MOTORS CORP.
  3. Insert the water inlet pipe into the water pump so that the marked position is aligned with the projection position.
    G12188443Courtesy of MAZDA MOTORS CORP.
  4. Temporarily tighten the bolt shown in the figure.
    G12228550Courtesy of MAZDA MOTORS CORP.
  5. Apply engine coolant to a new O-ring (flange side).
  6. Install the O-ring to the water inlet pipe.

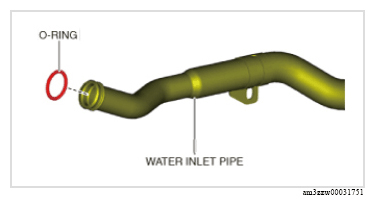

    G13174155Courtesy of MAZDA MOTORS CORP.
  7. Assemble the flange, gasket and bolts.

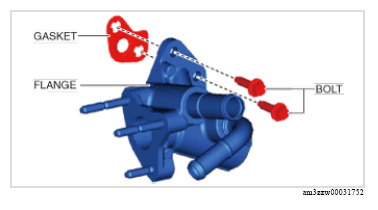

    G13174156Courtesy of MAZDA MOTORS CORP.
  8. Assemble the water inlet pipe and the flange so that the marked position is aligned with the projection position.
    G12188447Courtesy of MAZDA MOTORS CORP.
  9. Temporarily tighten the bolt shown in the figure.
    G12188448Courtesy of MAZDA MOTORS CORP.
  10. Tighten the bolts shown in the figure.

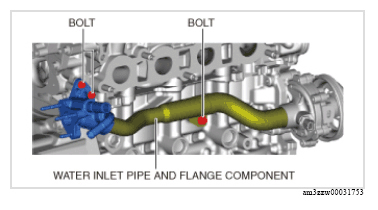

    G13174159Courtesy of MAZDA MOTORS CORP.
  11. Tighten the bolt shown in the figure. (With oil cooler)
    G13556356Courtesy of MAZDA MOTORS CORP.
