DTC U213D:00 [Pcm (SKYACTIV-G (Us))]: Outline

WARNING: This page is about a different variant/trim than selected.
DTC U213D:00 (PCM, SKYACTIV-G, US) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location CAN communication: communication error to TCM (Local CAN)
Detection condition
  • Communication error between the PCM and TCM continues for 5 s or more.
Fail-safe
  • Controls the turbine rotation signal at 0.
  • Inhibits the AT torque reduction request.
Possible cause
  • CAN communication line malfunction between PCM and TCM
  • TCM malfunction
  • PCM malfunction

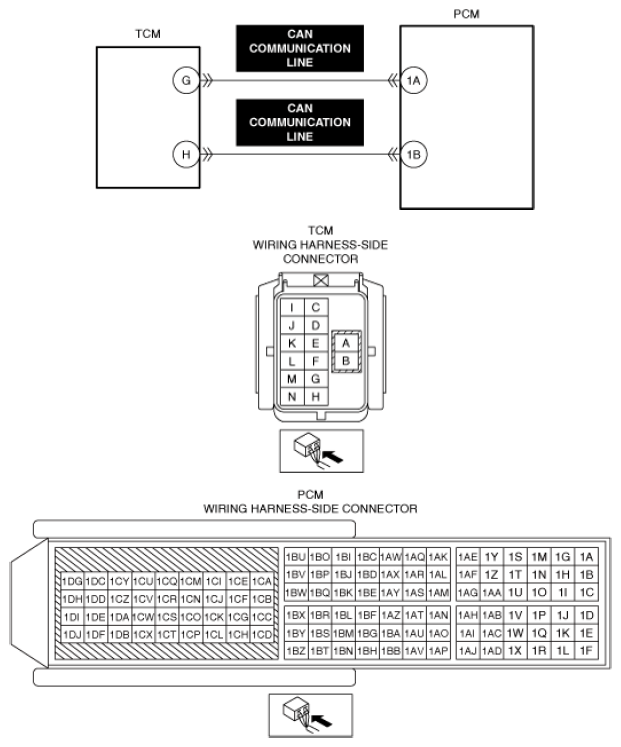

G13729657Courtesy of MAZDA MOTORS CORP.
