DTC U0323:00 [Pcm (SKYACTIV-G)]: Outline

WARNING: This page is about a different variant/trim than selected.

DTC U0323:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Instrument cluster error

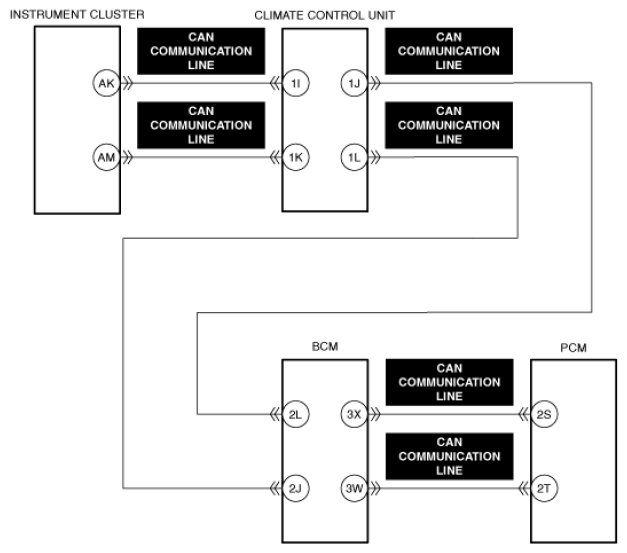

Detection condition	When any of the following conditions is met: CAN communication line malfunction between instrument cluster and PCM Instrument cluster internal malfunction
Fail-safe	Not applicable
Possible cause	CAN drive error (instrument cluster or PCM) CAN communication line malfunction between instrument cluster and PCM Instrument cluster connector or terminals malfunction PCM connector or terminals malfunction Instrument cluster malfunction PCM malfunction
