DTC U0320:00 [Pcm (SKYACTIV-G)]: Outline

WARNING: This page is about a different variant/trim than selected.

DTC U0320:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location	Electric Power Steering (EPS) control module error

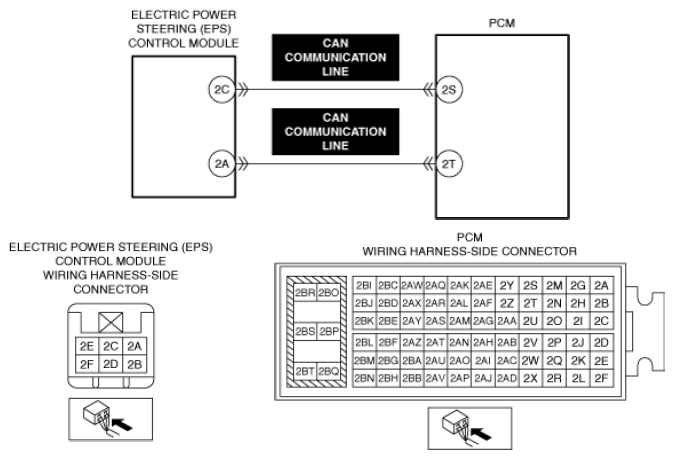

Detection condition	When any of the following conditions is met: CAN communication line malfunction between Electric Power Steering (EPS) control module and PCM Electric Power Steering (EPS) control module internal malfunction
Fail-safe	Not applicable
Possible cause	CAN drive error (Electric Power Steering (EPS) control module or PCM) CAN communication line malfunction between Electric Power Steering (EPS) control module and PCM Electric Power Steering (EPS) control module connector or terminals malfunction PCM connector or terminals malfunction Electric Power Steering (EPS) control module malfunction PCM malfunction
Courtesy of MAZDA MOTORS CORP.
