DTC U0315:00 [Pcm (SKYACTIV-G)]: Outline
WARNING: This page is about a different variant/trim than selected.
DTC U0315:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE
| System malfunction location |
DSC HU/CM error |
| Detection condition |
- When any of the following conditions is met:

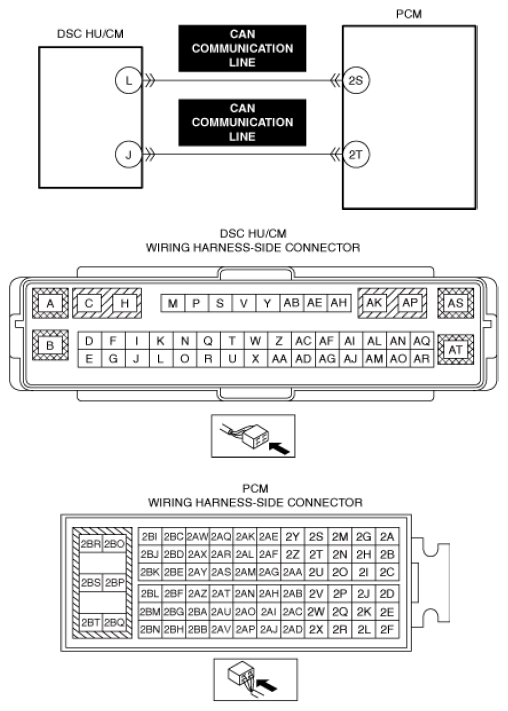

- CAN communication line malfunction between DSC HU/CM and PCM
- DSC HU/CM internal malfunction
|
| Fail-safe |
|
| Possible cause |
- CAN drive error (DSC HU/CM or PCM)
- CAN communication line malfunction between DSC HU/CM and PCM
- DSC HU/CM connector or terminals malfunction
- PCM connector or terminals malfunction
- DSC HU/CM malfunction
- PCM malfunction
|
 Courtesy of MAZDA MOTORS CORP.
|
