DTC U0074:00 [Pcm (SKYACTIV-G)]: Outline

WARNING: This page is about a different variant/trim than selected.
DTC U0074:00 (PCM, SKYACTIV-G) DETECTION CONDITION AND POSSIBLE CAUSE

System malfunction location CAN system communication error (Local CAN between PCM and TCM)
Detection condition
  • Malfunction in CAN bus communication line.
Fail-safe
  • Not applicable
Possible cause
  • CAN communication line malfunction between PCM and TCM (Local CAN between PCM and TCM)
  • TCM detects DTCs.
  • PCM malfunction
  • TCM malfunction

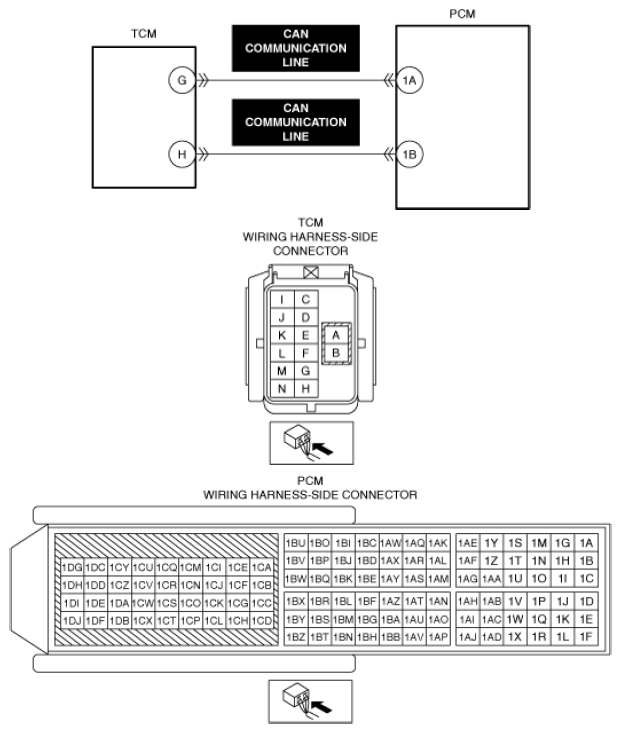

G13729644Courtesy of MAZDA MOTORS CORP.
