Water Pump Component Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

CAUTION:

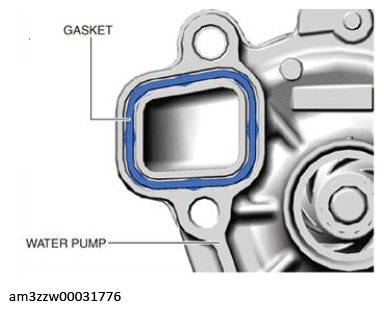

Assemble the water pump gasket to the correct direction shown in the illustration. Otherwise, it could leak engine coolant and damage the engine.

G13174846

Courtesy of MAZDA MOTORS CORP.

Do not apply oil (such as engine oil, ATF) to the water pump gasket. Otherwise, the gasket could swell causing a seal malfunction.

Insert a new water pump gasket into the water pump groove.
Install the water pump.

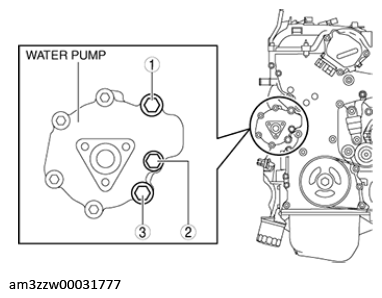

Tighten the bolts in the order shown in the illustration.

Fig 1: Water Pump Bolts Tightening Sequence
Courtesy of MAZDA MOTORS CORP.
