Cooling System Location Index

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

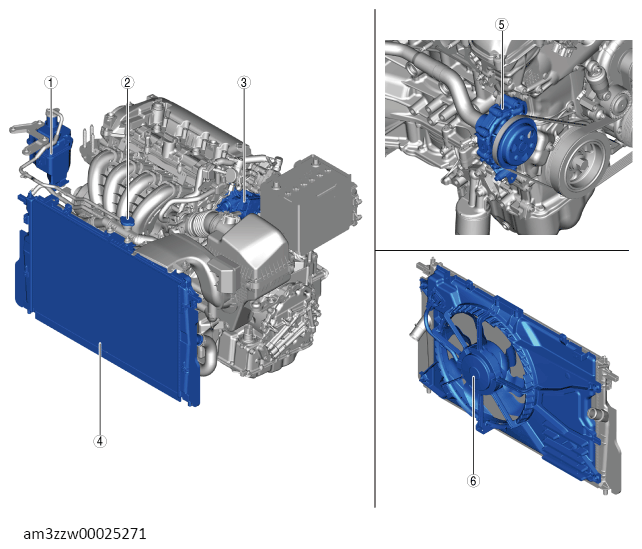

COMPONENT DESCRIPTION

1	Coolant reserve tank (See ENGINE COOLANT LEVEL INSPECTION .) (See COOLANT RESERVE TANK REMOVAL/INSTALLATION .)
2	Cooling system cap (See COOLING SYSTEM CAP INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .)
3	Coolant control valve (See COOLANT CONTROL VALVE REMOVAL/INSTALLATION .) (See COOLANT CONTROL VALVE INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .)
4	Radiator (See ENGINE COOLANT PROTECTION INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) (See ENGINE COOLANT REPLACEMENT .) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) (See RADIATOR REMOVAL/INSTALLATION .)
5	Water pump (See WATER PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .)
6	Cooling fan motor (See COOLING FAN MOTOR REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) (See COOLING FAN MOTOR INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .)
