Coolant Reserve Tank Removal/Installation: Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the hose and coolant reserve tank cap as a single unit.
Remove in the order indicated in the table.

Install in the reverse order of removal.

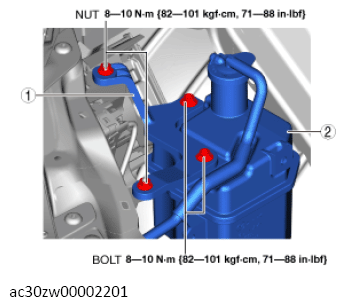

Fig 1: Coolant Reserve Tank Components With Torque Specification

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bracket
2	Coolant reserve tank (See COOLANT RESERVE TANK INSTALLATION NOTE .)
