Coolant Control Valve Removal Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

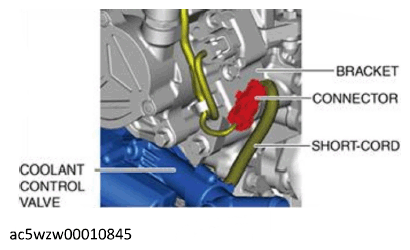

- Disconnect the connector shown in the illustration.

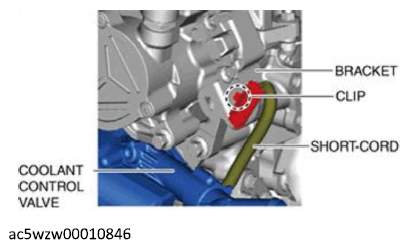

- Remove the clip shown in the illustration.
- Remove the coolant control valve.
- When replacing the engine coolant control valve, remove ECT sensor No. 2. (See ENGINE COOLANT TEMPERATURE (ECT) SENSOR REMOVAL/INSTALLATION .)
