Vacuum Pump Removal/Installation (VIN L) (Us): Notes

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Replacement Part

O-ring

Quantity: 1

Location of use: Vacuum pump

WARNING:

A hot engine can cause severe burns. Turn off the engine and wait until it is cool before removing the exhaust system.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the following parts as a single unit. (See INTAKE-AIR SYSTEM REMOVAL/INSTALLATION (VIN L) (US) .)
- Air hose
- Air cleaner cover
- Air cleaner element
- Air cleaner case
- Fresh-air duct
- Resonance chamber
Remove the battery. (See BATTERY REMOVAL/INSTALLATION (VIN L) (US) .)
Remove the battery tray and PCM component. (See BATTERY REMOVAL/INSTALLATION (VIN L) (US) .)
Set the PCM wiring harness out of the way.
Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN L) (US) .)
Pinch open the clamp using pliers and disconnect the vacuum hose from the vacuum pump. (See VACUUM HOSE REMOVAL/INSTALLATION (VIN L) (US) .)
Remove in the order shown in the table.
Install in the reverse order of removal.

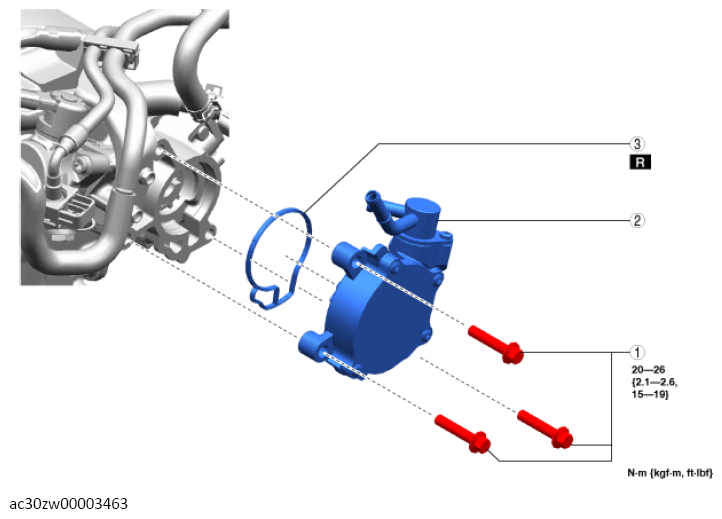

Fig 1: Vacuum Pump Components With Torque Specification (SKYACTIV-G, Without Cylinder Deactivation, US)

Courtesy of MAZDA MOTORS CORP.

COMPONENT DESCRIPTION

1	Bolt
2	Vacuum pump (See VACUUM PUMP REMOVAL NOTE .) (See VACUUM PUMP AND O-RING INSTALLATION NOTE .)
3	O-ring (See VACUUM PUMP AND O-RING INSTALLATION NOTE .)
