Between vacuum pump and power brake unit
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the vacuum hose. (See VACUUM HOSE REMOVAL/INSTALLATION (VIN L) (US) .)

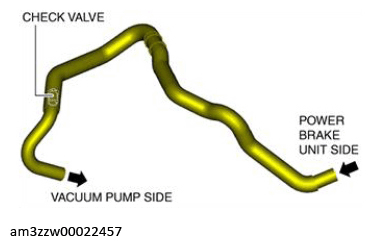

- Verify that air can be blown from the power brake unit side of the vacuum hose towards the vacuum pump side, and that air cannot be blown in the opposite direction.
- If there is any malfunction of the inner check valve, replace it together with the vacuum hose as a single unit.
