Between Intake Manifold and Vacuum Pump: Notes
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION (VIN M) (US) .)

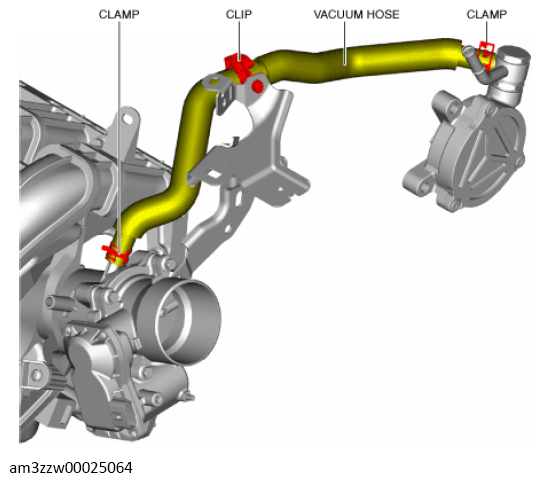

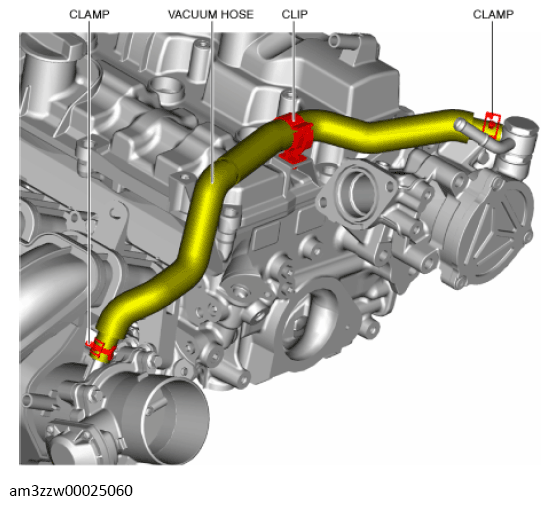

- Disconnect the vacuum hose from the clip.
- Pinch open the clamps using pliers and disconnect the vacuum hose.
- Install in the reverse order of removal. (See VACUUM HOSE (BETWEEN INTAKE MANIFOLD AND VACUUM PUMP) INSTALLATION NOTE .)
