Vehicle Front Side

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Courtesy of MAZDA MOTORS CORP.

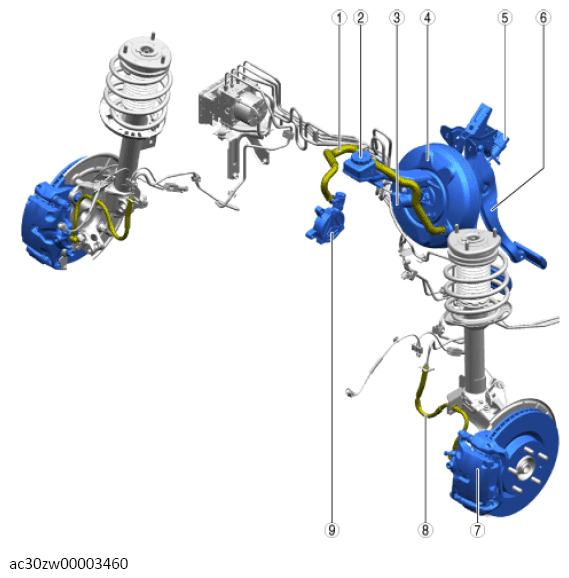

COMPONENT DESCRIPTION

1	Vacuum line (See VACUUM LINE INSPECTION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) (See VACUUM LINE INSPECTION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .) (See VACUUM LINE INSPECTION [SKYACTIV-G 2.5T (US)] .) (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .) (See VACUUM HOSE REMOVAL/INSTALLATION [SKYACTIV-G 2.5T (US)] .)
2	Brake fluid (See BRAKE FLUID INSPECTION (US) .) (See BRAKE FLUID AIR BLEEDING (US) .)
3	Master cylinder (See MASTER CYLINDER REMOVAL/INSTALLATION [L.H.D. (US)] .) (See BRAKE FLUID LEVEL SENSOR INSPECTION (US) .)
4	Power brake unit (See POWER BRAKE UNIT INSPECTION (US) .) (See POWER BRAKE UNIT REMOVAL/INSTALLATION [L.H.D. (US)] .)
5	Brake switch (See BRAKE SWITCH INSPECTION .)
6	Brake pedal (See BRAKE PEDAL INSPECTION (US) .) (See BRAKE PEDAL REMOVAL/INSTALLATION (L.H.D.) (US) .)
7	Front brake (disc) (See FRONT BRAKE INSPECTION (US) .) (See FRONT BRAKE DISC REMOVAL/INSTALLATION (US) .) (See FRONT BRAKE DISC PAD REMOVAL/INSTALLATION (US) .) (See FRONT BRAKE CALIPER REMOVAL/INSTALLATION (US) .) (See FRONT BRAKE CALIPER DISASSEMBLY/ASSEMBLY .) (See FRONT BRAKE MOUNTING SUPPORT REMOVAL/INSTALLATION (US) .)
8	Front brake hose (See FRONT BRAKE HOSE REMOVAL/INSTALLATION (US) .)
9	Vacuum pump (See VACUUM PUMP INSPECTION (US) .) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITHOUT CYLINDER DEACTIVATION (US))] .) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G (WITH CYLINDER DEACTIVATION (US))] .) (See VACUUM PUMP REMOVAL/INSTALLATION [SKYACTIV-G 2.5T (US)] .)
