Brake Pedal Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Temporarily tighten nuts A.

Courtesy of MAZDA MOTORS CORP.
Temporarily tighten nuts B.
Tighten nuts B to the specified torque.
Tighten nuts A to the specified torque.
Tighten the nuts in the order shown in the illustration.

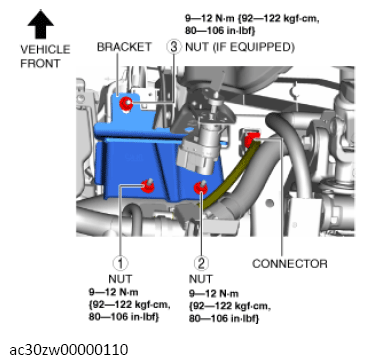

Fig 1: Bracket, Connector And Nuts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Connect the connector. (With active driving display)
