Pedal-to-floor Clearance Inspection
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Start the engine and depress the brake pedal with a force of 147 N {15.0 kgf, 33.0 lbf}.

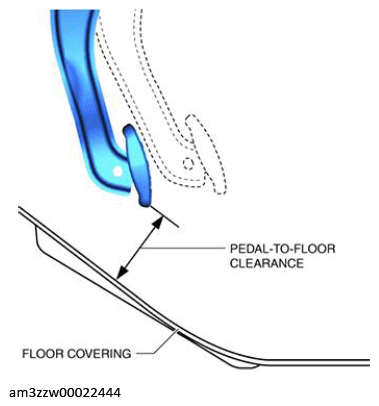

- Measure the distance from the center of the upper surface of the pedal pad to the floor covering and verify that it is as specified.
Brake pedal-to-floor clearance (Brake pedal when depressed at 147 N {15.0 kgf, 33.0 lbf})
62.3 mm {2.45 in}
- If it is less than the specification, inspect for air in the brake line. (See BRAKE FLUID AIR BLEEDING (US) .)
