Pedal Height Inspection
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

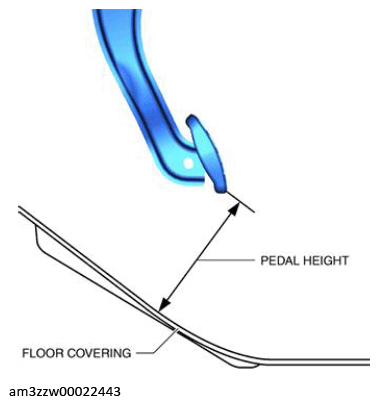

- Measure the distance from the floor covering to the position (pedal pad lower end and center) shown in the illustration of the upper surface of the pedal pad and verify that it is as specified.
- If not within the specification, inspect the following items and repair or replace the applicable part if there is any malfunction.
- Power brake unit installation condition
- Deformation of or damage to the power brake unit fork
- Brake pedal installation condition
- Clevis pin wear
Brake pedal height (reference value)
108.6 mm {4.276 in}
- If there is no malfunction in the above items, replace the brake pedal. (See BRAKE PEDAL REMOVAL/INSTALLATION (L.H.D.) (US) .)
