Intake Manifold Removal Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

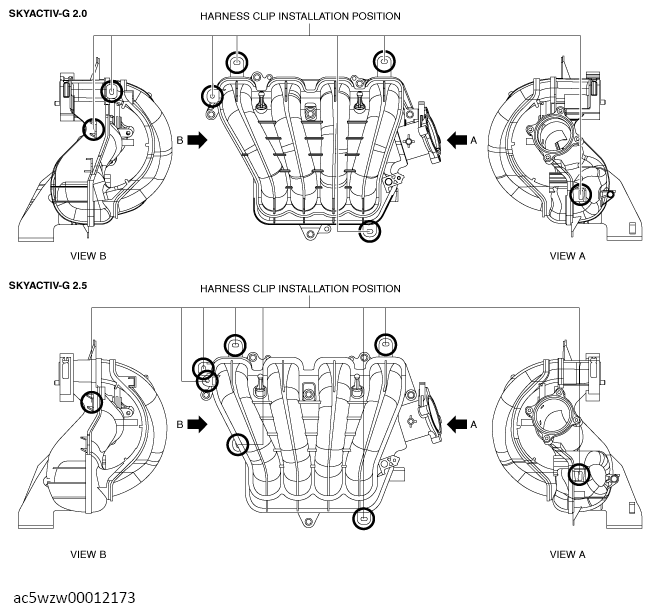

  1. Disconnect the harness clip from the intake manifold as shown in the illustration.
    G13557102Courtesy of MAZDA MOTORS CORP.
  2. Remove the intake manifold.
