Evaporative Hose Installation Note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

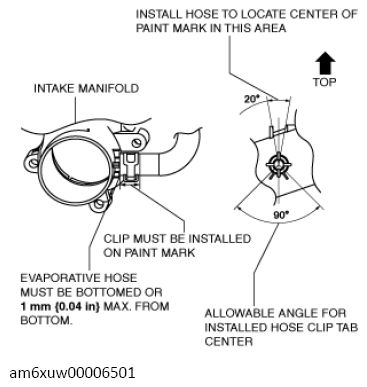

Install the evaporative hose as shown in the illustration.

Courtesy of MAZDA MOTORS CORP.
