Air Cleaner Cover Installation Note
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

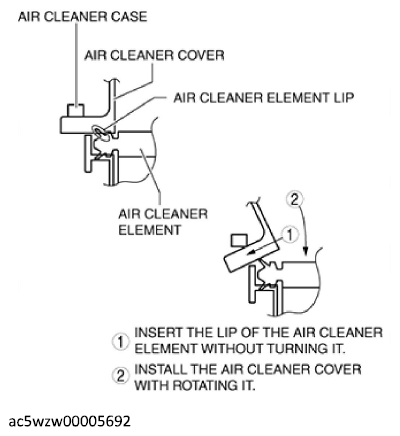

- Install the air cleaner cover as shown in the illustration.
 Courtesy of MAZDA MOTORS CORP.
|

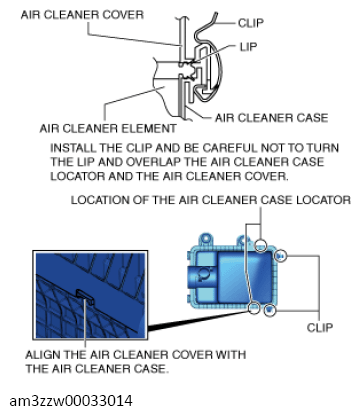

- Secure the air cleaner cover and the air cleaner case with the clip.
 Courtesy of MAZDA MOTORS CORP.
|
