USB Port/SD Card Slot Hub Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the upper panel. (See UPPER PANEL REMOVAL/INSTALLATION .)
- Remove the console-up. (See UPPER PANEL REMOVAL/INSTALLATION .)

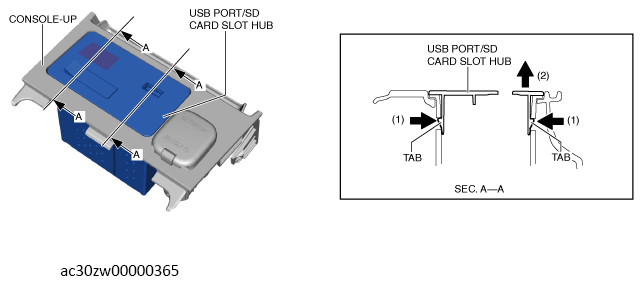

- While pressing the tabs of the USB port/SD card slot hub in the direction of arrows (1) shown in the illustration, move the USB port/SD card slot hub in the direction of arrow (2) and detach the tabs of the USB port/SD card slot hub from the console-up.
- Remove the USB port/SD card slot hub.
- Install in the reverse order of removal.
