Speaker Inspection: Tweeter

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Connect the negative battery cable. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the tweeter. (See TWEETER REMOVAL/INSTALLATION .)

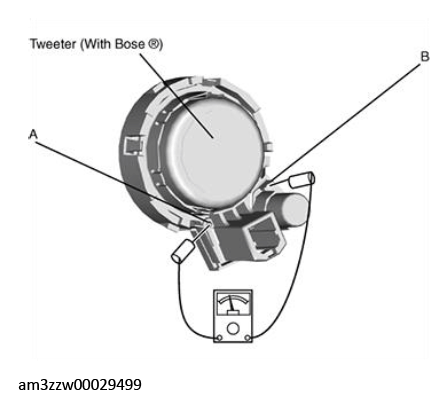

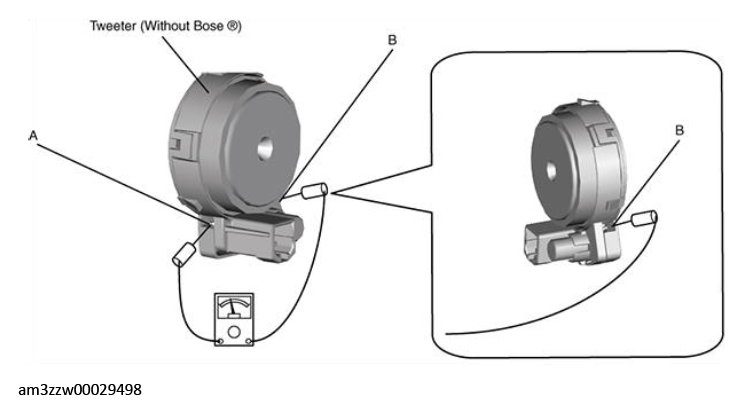

Inspect the resistance between positions A and B shown in the illustration.
Tweeter resistance

Without Bose®: 3.9-4.7 ohms

With Bose®: 3.4 ohms

Courtesy of MAZDA MOTORS CORP.

Courtesy of MAZDA MOTORS CORP.
- If not within the specification, replace the tweeter. (See TWEETER REMOVAL/INSTALLATION .)
