Rear Door Speaker Removal/Installation
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
CAUTION:
- If the procedure is performed while holding the rear door speaker cone, it could deform the cone causing a malfunction. Therefore, perform the procedure while holding any part other than the cone.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the power window subswitch. (See POWER WINDOW SUB SWITCH REMOVAL/INSTALLATION .)
- Remove the rear door trim. (See REAR DOOR TRIM REMOVAL/INSTALLATION .)

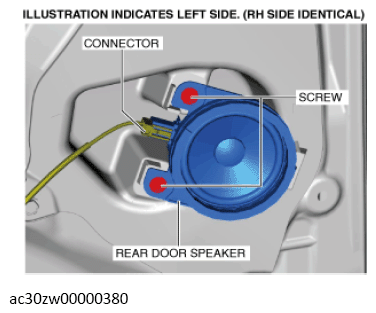

- Remove the screws.
- Disconnect the connector.

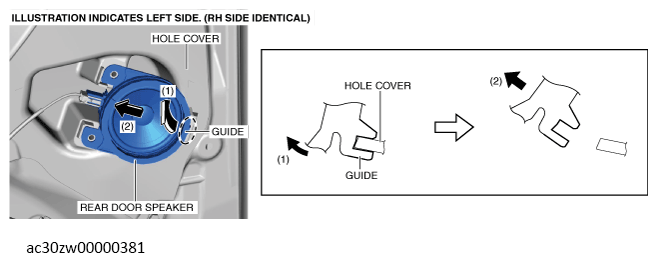

- Move the rear door speaker in the direction of the arrow in the order of (1), (2) while detaching the guide.
- Install in the reverse order of removal.
