Global Positioning System (GPS) Antenna Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
Remove the passenger-side decoration panel. (See DECORATION PANEL REMOVAL/INSTALLATION .)

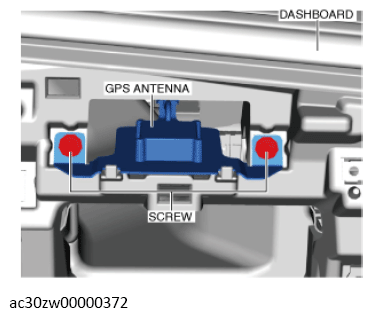

Remove the screws.

Courtesy of MAZDA MOTORS CORP.

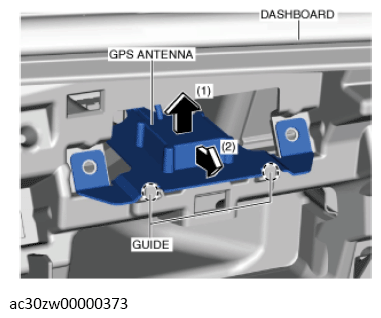

Move the GPS antenna in the order of arrows (1) and (2) shown in the illustration, and remove it while detaching the guides.

Courtesy of MAZDA MOTORS CORP.

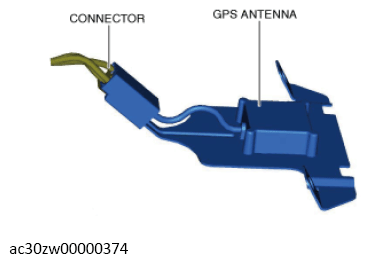

Disconnect the connector.

Courtesy of MAZDA MOTORS CORP.
Install in the reverse order of removal.
