Front Center Speaker Removal/Installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the center speaker grille. (See SPEAKER GRILLE REMOVAL/INSTALLATION .)

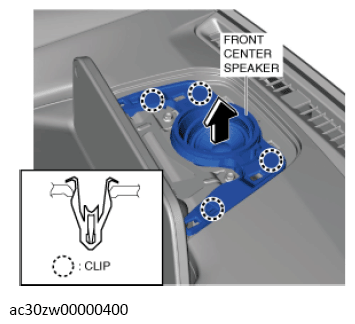

  3. Move the front center speaker in the direction of the arrow shown in the illustration while detaching the clips.
    G13561069Courtesy of MAZDA MOTORS CORP.

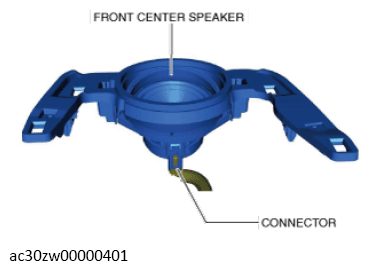

  4. Disconnect the connector.
    G13561070Courtesy of MAZDA MOTORS CORP.

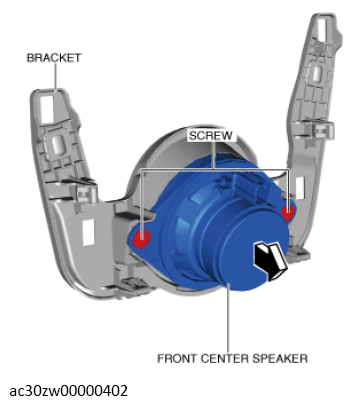

  5. Remove the screws.
    G13561071Courtesy of MAZDA MOTORS CORP.
  6. Remove the front center speaker in the direction of the arrow shown in the illustration.
  7. Install in the reverse order of removal.
