High Beam Control Switch Inspection (Us)
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Remove the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION (US) .)

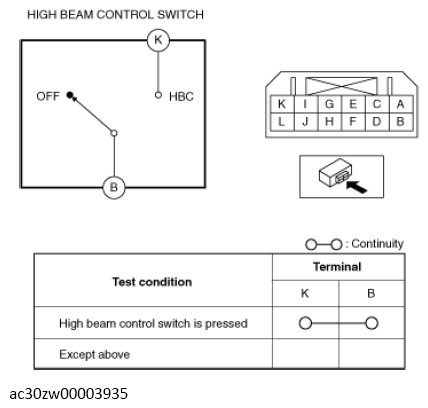

- Verify that the continuity between the high beam control switch terminals is as indicated in the table.
- If not as indicated in the table, replace the light switch. (See LIGHT SWITCH REMOVAL/INSTALLATION (US) .)
