Without Passenger-side Knee Air Bag Module

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the glove compartment. (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
  3. Remove the bolt.

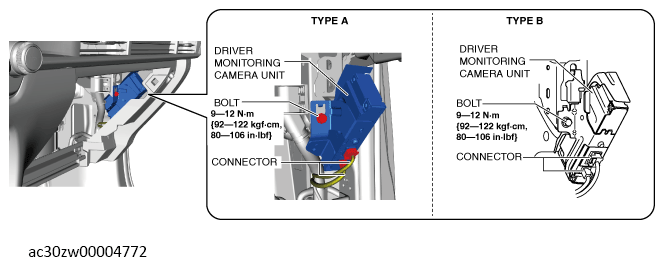

    Fig 1: Driver Monitoring Camera Unit, Connectors And Bolts With Torque Specification - Without Passenger-Side Knee Air Bag Module
    G13561420Courtesy of MAZDA MOTORS CORP.
  4. Disconnect the connectors.
  5. Remove the driver monitoring camera unit.
  6. Install in the reverse order of removal.
