With Passenger-side Knee Air Bag Module

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    2. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    3. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    4. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    5. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
  3. Disconnect the connectors.

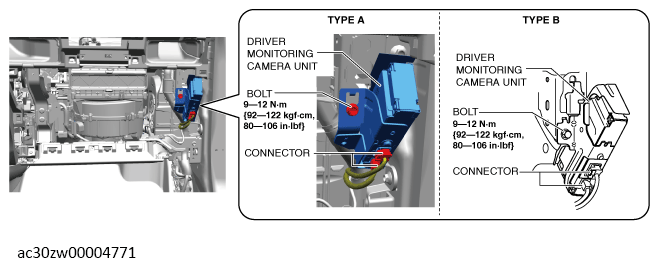

    Fig 1: Driver Monitoring Camera Unit, Connectors And Bolts With Torque Specification - With Passenger-Side Knee Air Bag Module
    G13561419Courtesy of MAZDA MOTORS CORP.
  4. Remove the bolt.
  5. Remove the driver monitoring camera unit.
  6. Install in the reverse order of removal.
