Preparation Before Servicing
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Empty the vehicle by having all occupants leave the vehicle and remove all the cargo except for the spare tire, jack and tools equipped on the vehicle.
- Adjust the air pressure of each tire to the specified value. (See WHEEL AND TIRE SPECIFICATION (US) .)
- Move the vehicle to level ground.CAUTION:
- To assure that the 360° view monitor system aiming is performed correctly, perform the aiming under the following conditions.

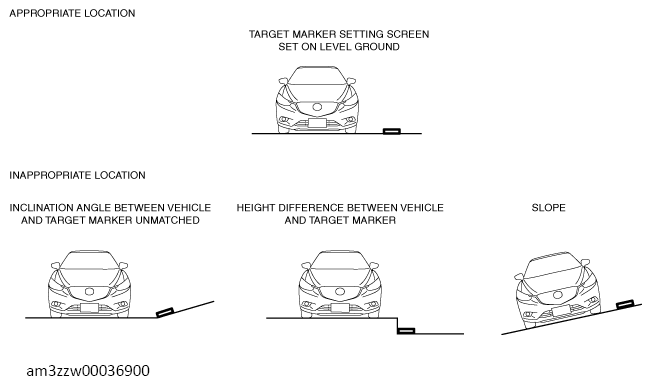

- Perform aiming in location where vehicle and target marker can be placed on same level (with difference within 2 degrees in both lateral and longitudinal directions) surface
- Do not move vehicle during adjustment
- Do not shake vehicle during adjustment (opening door, getting into vehicle)
- Lens surface of 4 cameras is clean
- Supply voltage to 360° view monitor control module: 9.5 to 15.5 V
- Ambient temperature: -30 to 60°C {-22 to 140°F}
- To assure that the 360° view monitor system aiming is performed correctly, perform the aiming under the following conditions.
- Using the M-MDS, perform a DTC inspection of the 360° view monitor control module and verify that no DTCs are displayed. (See DTC INSPECTION
.)
- If any DTCs are displayed, perform malfunction repair referring to the applicable DTC troubleshooting. (See DTC TABLE [360° VIEW MONITOR CONTROL MODULE (US)]
.) (See DTC TABLE [VEHICLE CONTROL MODULE (US)]
.)NOTE:
- The center of the brand emblem indicates the center position of the vehicle.
- Use a commercially-available leveling line.
- If any DTCs are displayed, perform malfunction repair referring to the applicable DTC troubleshooting. (See DTC TABLE [360° VIEW MONITOR CONTROL MODULE (US)]
.) (See DTC TABLE [VEHICLE CONTROL MODULE (US)]
.)

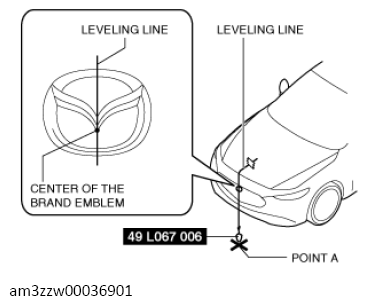

- Adjust the SST so that it is aligned with the center of the brand emblem, determine the center position at the front of the vehicle, and mark the center position (point A) on the floor surface.

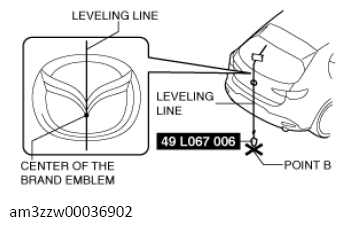

- Adjust the SST so that it is aligned with the center of the brand emblem, determine the center position at the rear of the vehicle, and mark the center position (point B) on the floor surface.

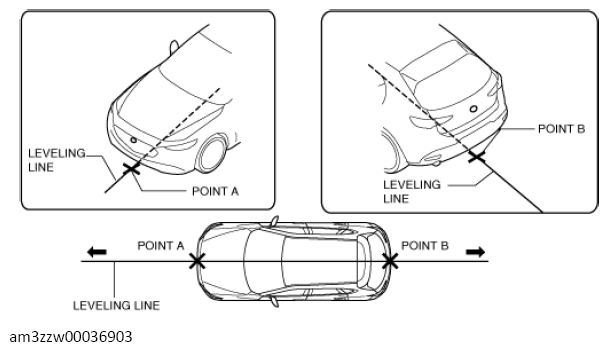

- Secure the end of the leveling line over point B.
- Pull the leveling line towards the front and rear of the vehicle and adjust it so that it passes over points A and B.
- Secure the leveling line.
