Magnetic Clutch Inspection [SKYACTIV-G]
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Disconnect the magnetic clutch connector. (See MAGNETIC CLUTCH DISASSEMBLY/ASSEMBLY [SKYACTIV-G] .)

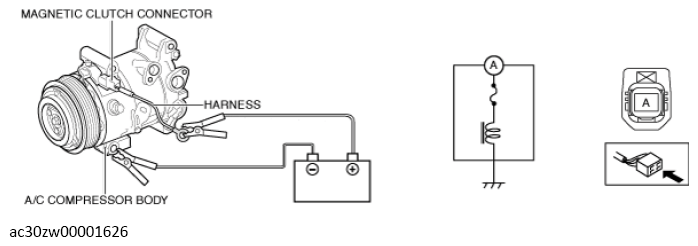

- Connect battery to terminal A of magnetic clutch and ground to A/C compressor body.
- Verify that the magnetic clutch operates.
- If there is any malfunction, replace the magnetic clutch. (See MAGNETIC CLUTCH ADJUSTMENT [SKYACTIV-G] .)
