Stator removal/installation note

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.

Remove the bolts A, B, and C.

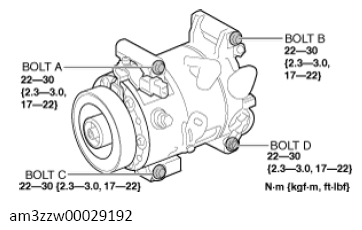

Fig 1: Stator Bolts With Torque Specification
Courtesy of MAZDA MOTORS CORP.
Loose bolt D approx. 5 mm {0.2 in}.
Tilt the A/C compressor centered around bolt D.

Courtesy of MAZDA MOTORS CORP.

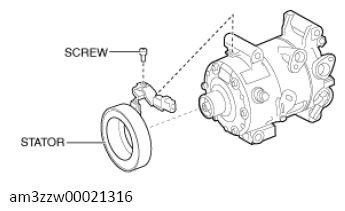

Remove the screw.

Courtesy of MAZDA MOTORS CORP.
Remove the stator.
