Bolt removal/installation

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Connect the harness to the magnetic clutch connector.

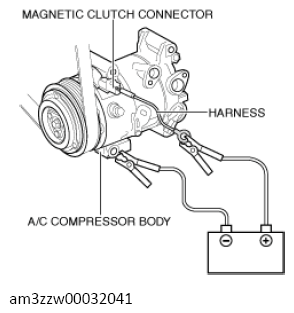

    G13559195Courtesy of MAZDA MOTORS CORP.
  2. Connect the battery (+) cable to the harness.
  3. Connect the battery (-) cable to the A/C compressor body.
    NOTE:
    • Energize the magnet clutch and fix the A/C compressor pulley and the pressure plate.
  4. Secure the crankshaft pulley.

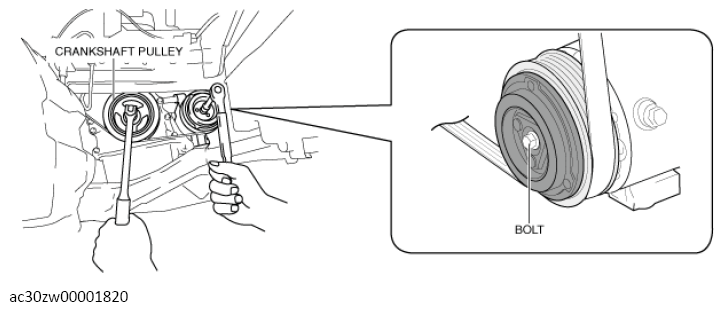

    G13559196Courtesy of MAZDA MOTORS CORP.
  5. Remove/installation the bolt.
