Heater Hose Removal/Installation [SKYACTIV-G]: R.H.D.
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal.
- Drain the engine coolant.
- Remove the following parts:
- Plug hole plate
- Windshield wiper arm and blade (See WINDSHIELD WIPER ARM AND BLADE REMOVAL/INSTALLATION .)
- Cowl grille (See COWL GRILLE REMOVAL/INSTALLATION .)
- Windshield wiper motor and link (See WINDSHIELD WIPER MOTOR AND LINK REMOVAL/INSTALLATION .)
- Cowl panel

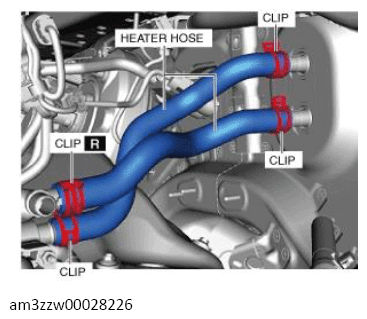

- Remove the heater hose.
- Install in the reverse order of the removal.
- Inspect for engine coolant leakage.
