Heater Hose Removal/Installation [SKYACTIV-G]: L.H.D.
WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
- Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
- Drain the engine coolant. (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (VIN L (US))] .) (See ENGINE COOLANT REPLACEMENT [SKYACTIV-G (VIN M (US))] .)
- Remove the plug hole plate. (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (VIN L (US))] .) (See PLUG HOLE PLATE REMOVAL/INSTALLATION [SKYACTIV-G (VIN M (US))] .)

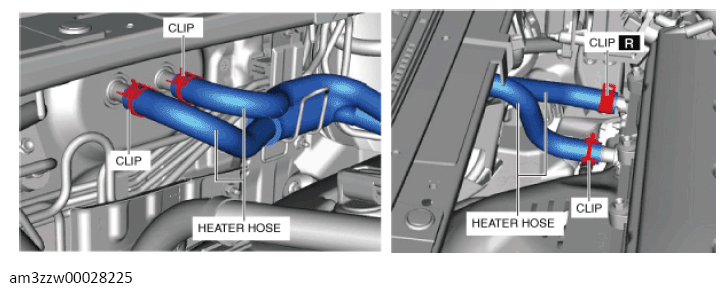

- Remove the heater hose.
- Install in the reverse order of the removal.
- Inspect for engine coolant leakage. (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G (VIN L (US))] .) (See ENGINE COOLANT LEAKAGE INSPECTION [SKYACTIV-G (VIN M (US))] .)
