Passenger-side Front Heat Duct No. 2

WARNING: This page is about a different car, the 2020 Mazda CX-30. However, it is still accessible from the selected car via links, so may be relevant.
  1. Disconnect the negative battery terminal. (See NEGATIVE BATTERY TERMINAL DISCONNECTION/CONNECTION (US) .)
  2. Remove the following parts:
    1. Glove compartment (without passenger-side knee air bag module) (See GLOVE COMPARTMENT REMOVAL/INSTALLATION .)
    2. Dashboard under cover (See DASHBOARD UNDER COVER REMOVAL/INSTALLATION .)
    3. Passenger-side front scuff plate (See FRONT SCUFF PLATE REMOVAL/INSTALLATION .)
    4. Passenger-side front side trim (See FRONT SIDE TRIM REMOVAL/INSTALLATION .)
    5. Passenger-side decoration panel (See DECORATION PANEL REMOVAL/INSTALLATION .)
    6. Passenger-side lower panel (See LOWER PANEL REMOVAL/INSTALLATION (US) .)
  3. Remove the hose.

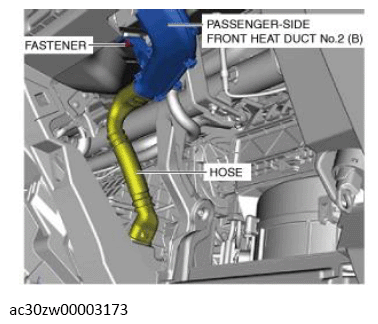

    G13559156Courtesy of MAZDA MOTORS CORP.
  4. Remove the fastener.
  5. Remove the passenger-side front heat duct No. 2 (B).

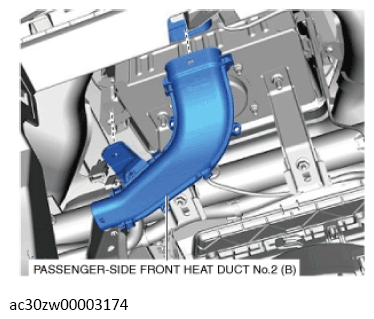

    G13559157Courtesy of MAZDA MOTORS CORP.
  6. Remove the screws.

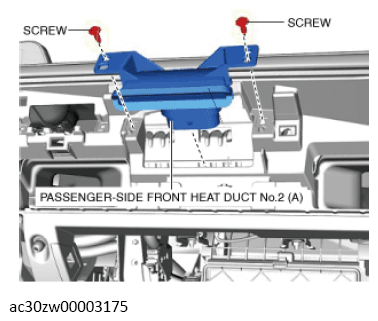

    G13559158Courtesy of MAZDA MOTORS CORP.
  7. Remove the passenger-side front heat duct No. 2 (A).
  8. Install in the reverse order of removal.
